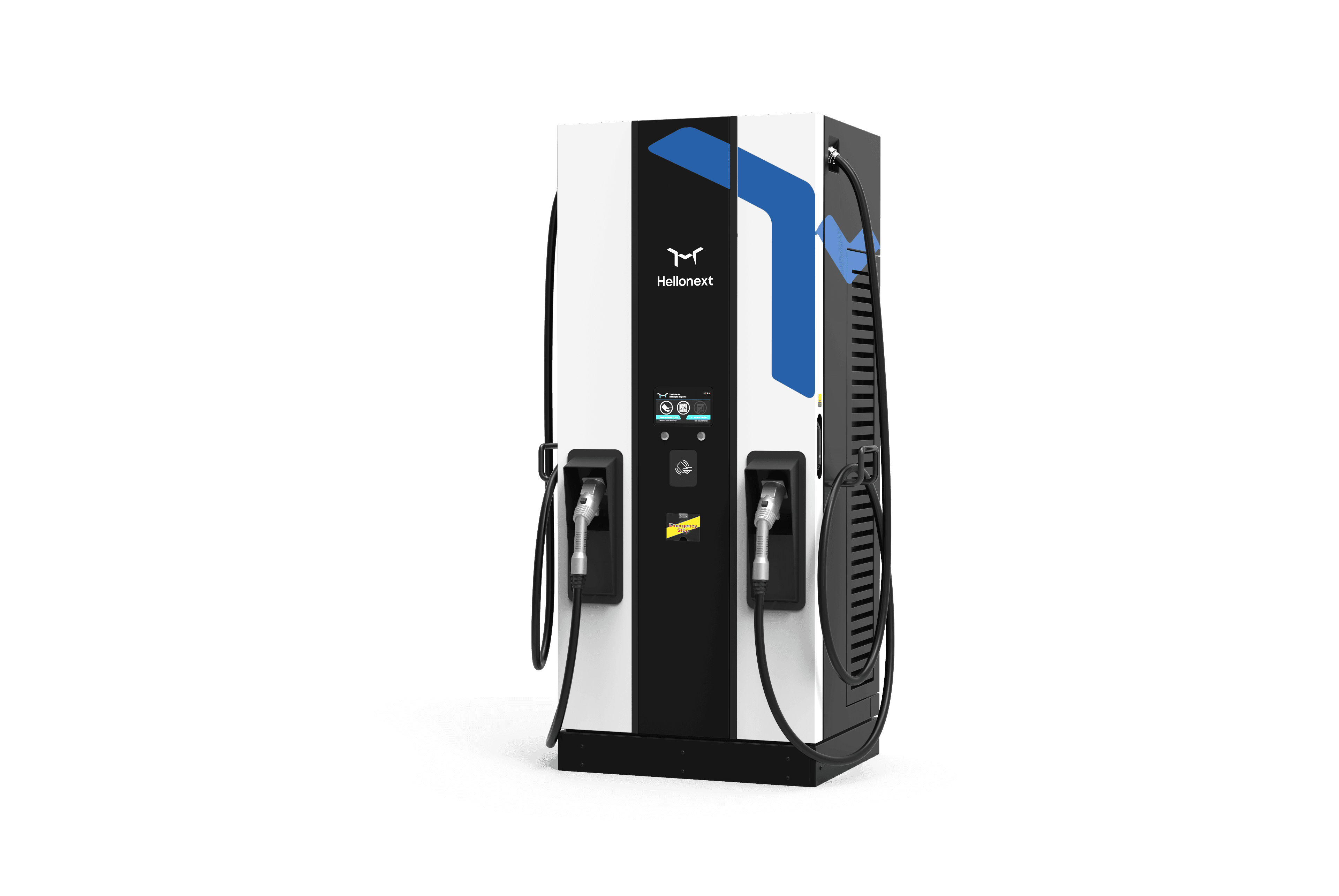

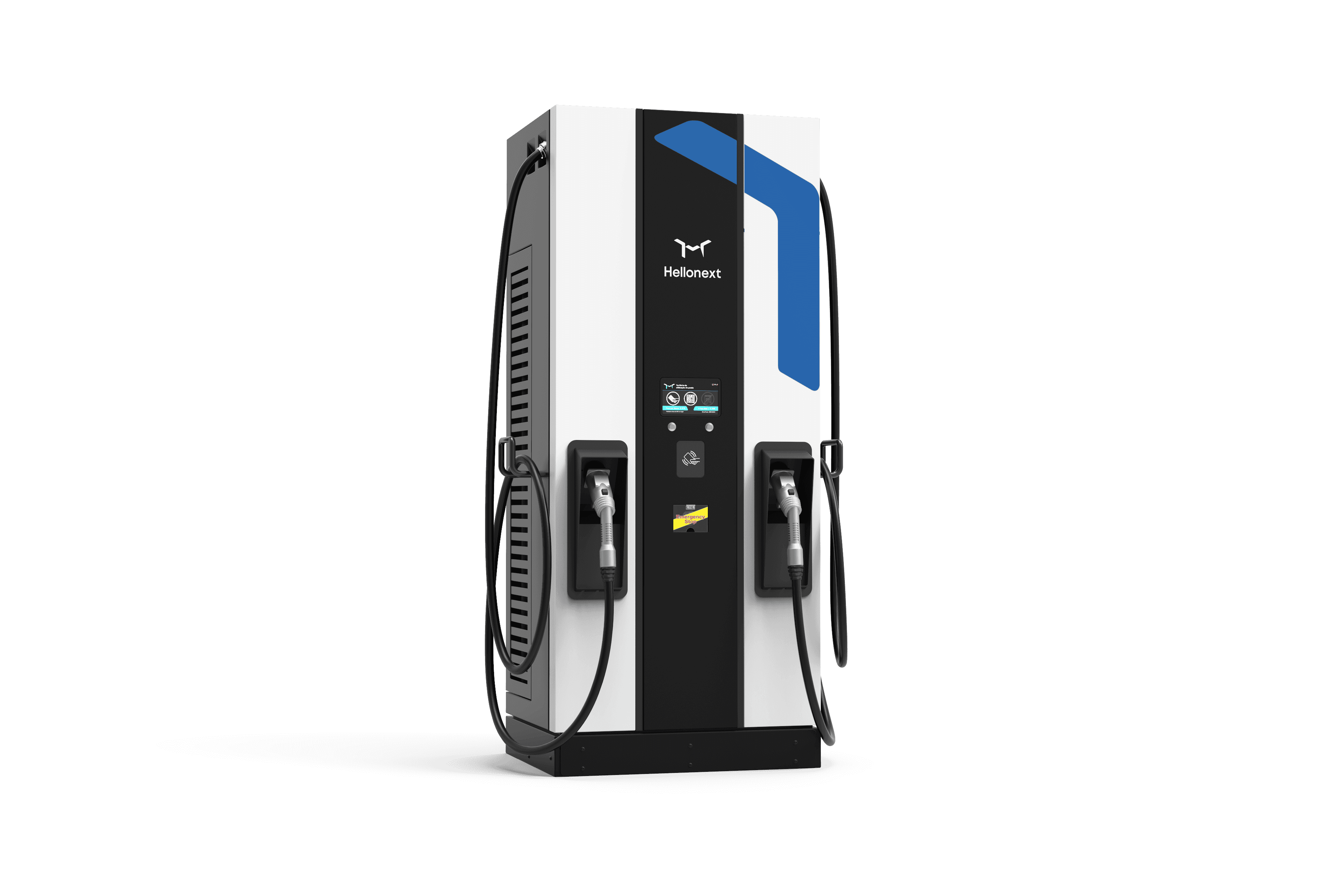

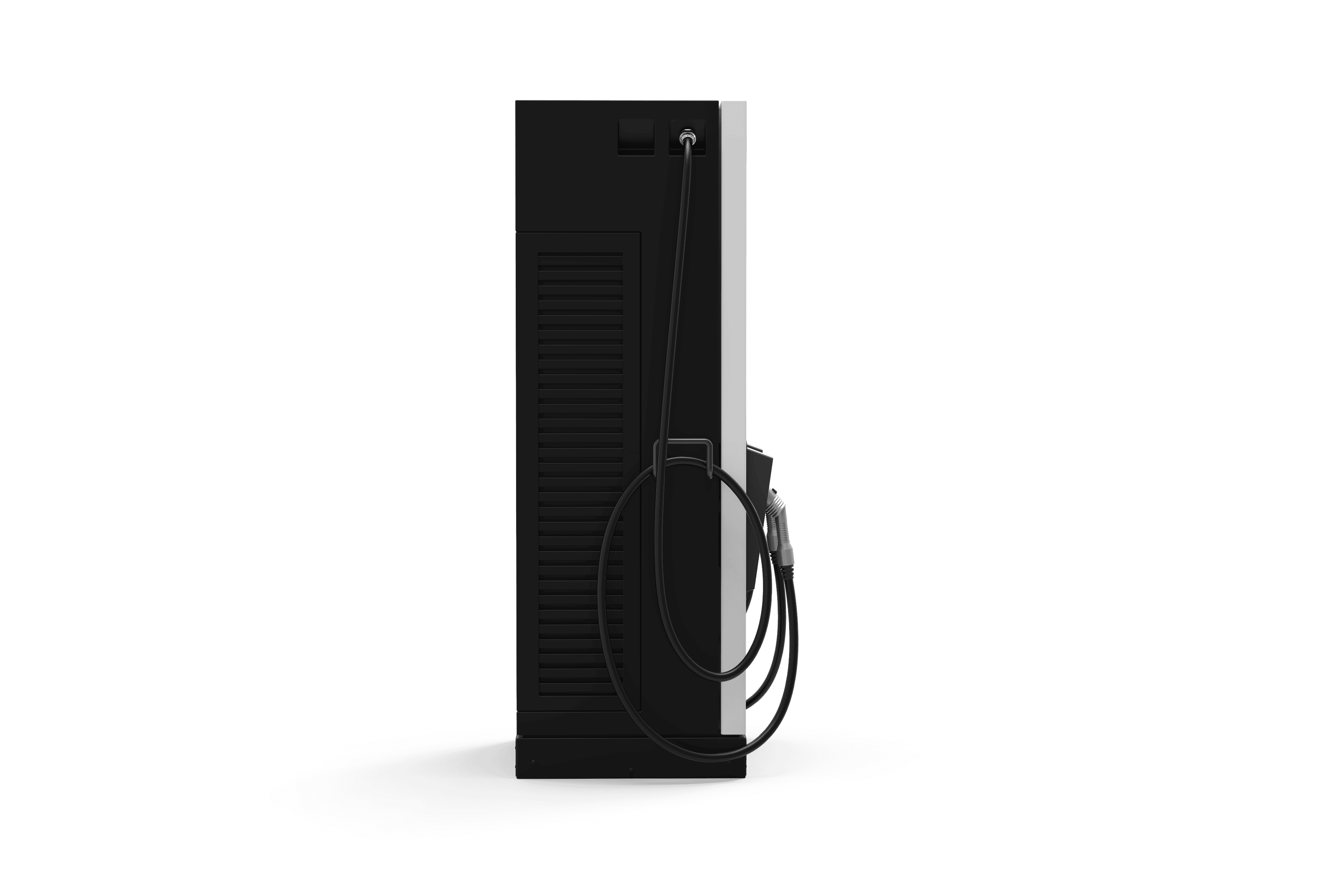

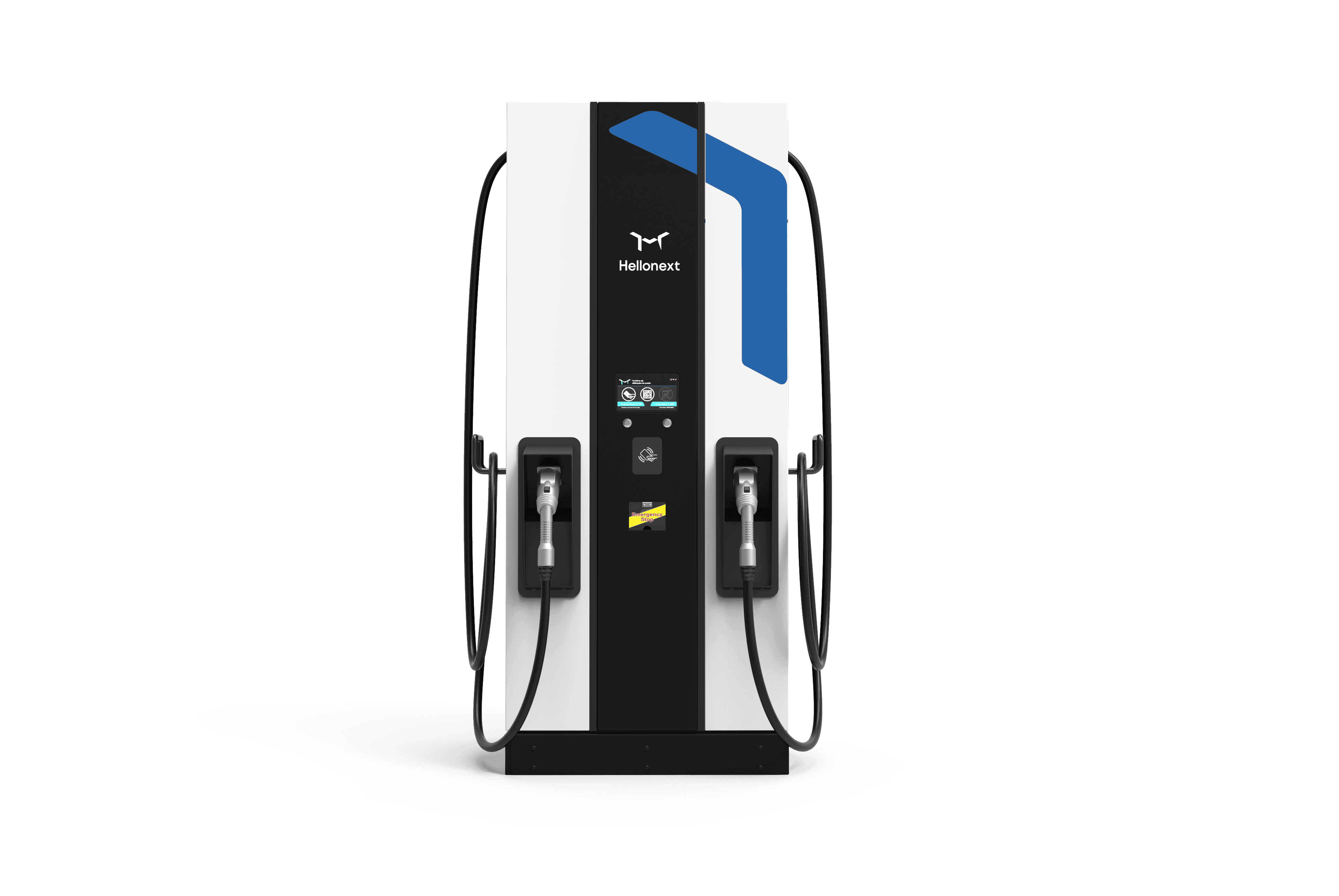

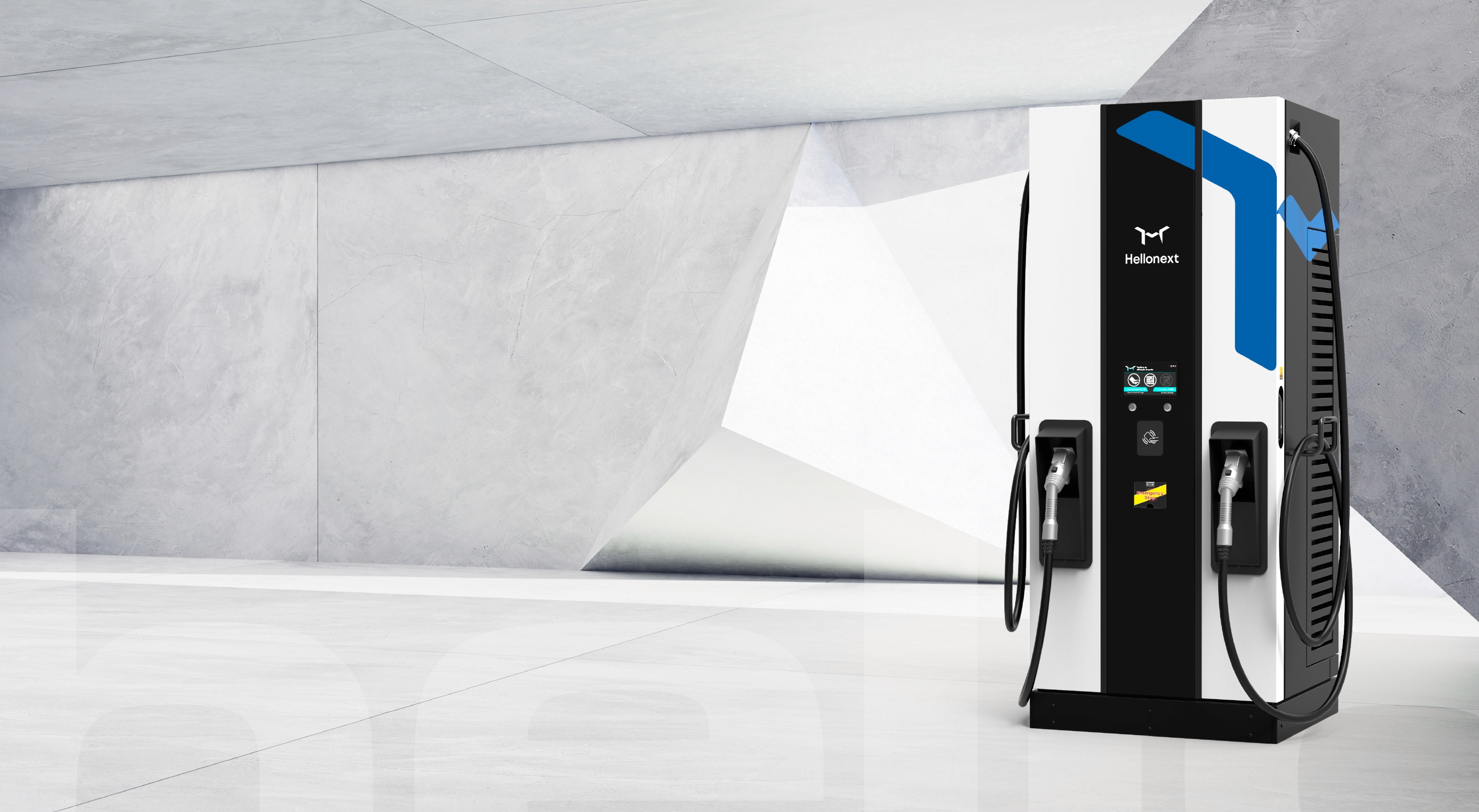

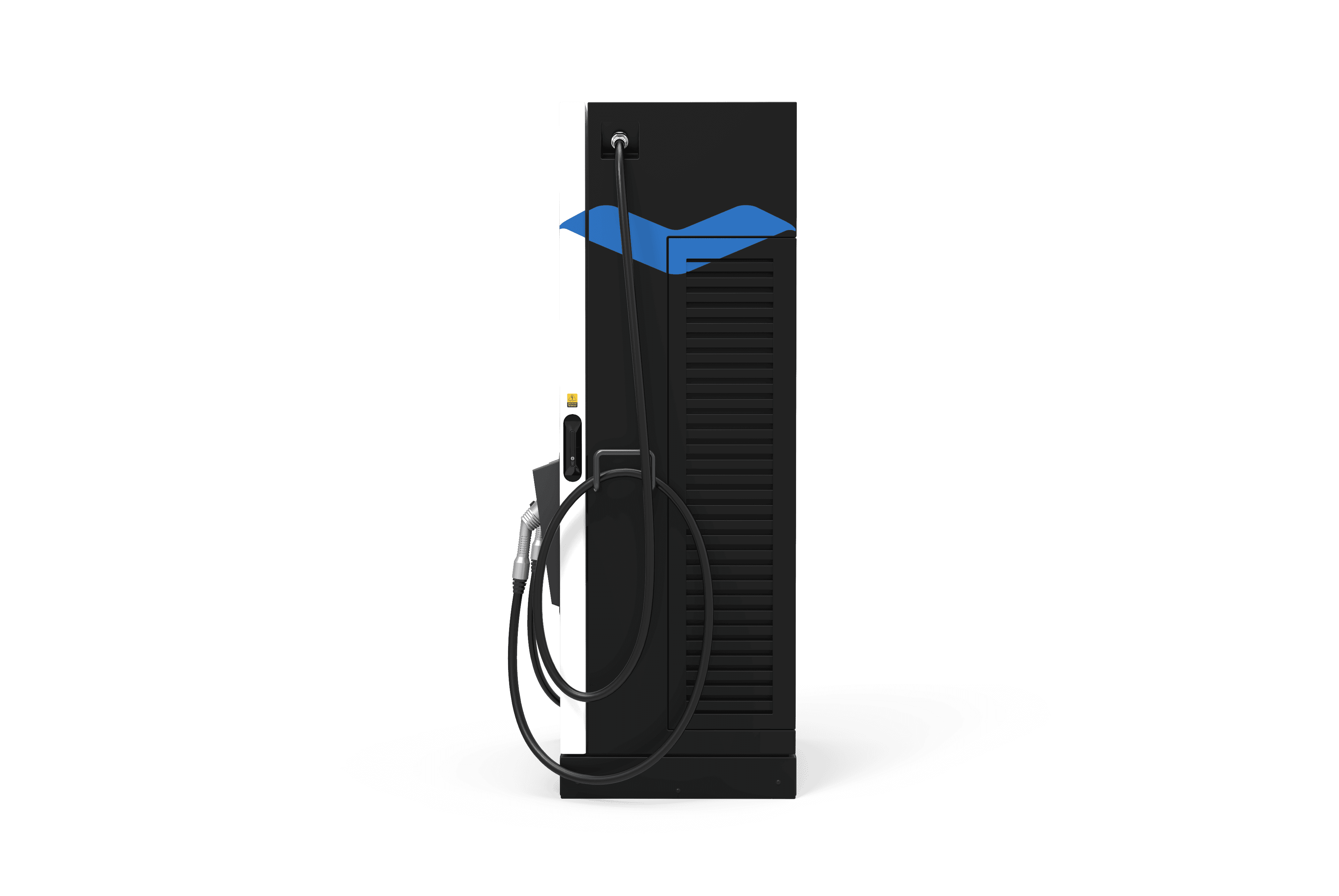

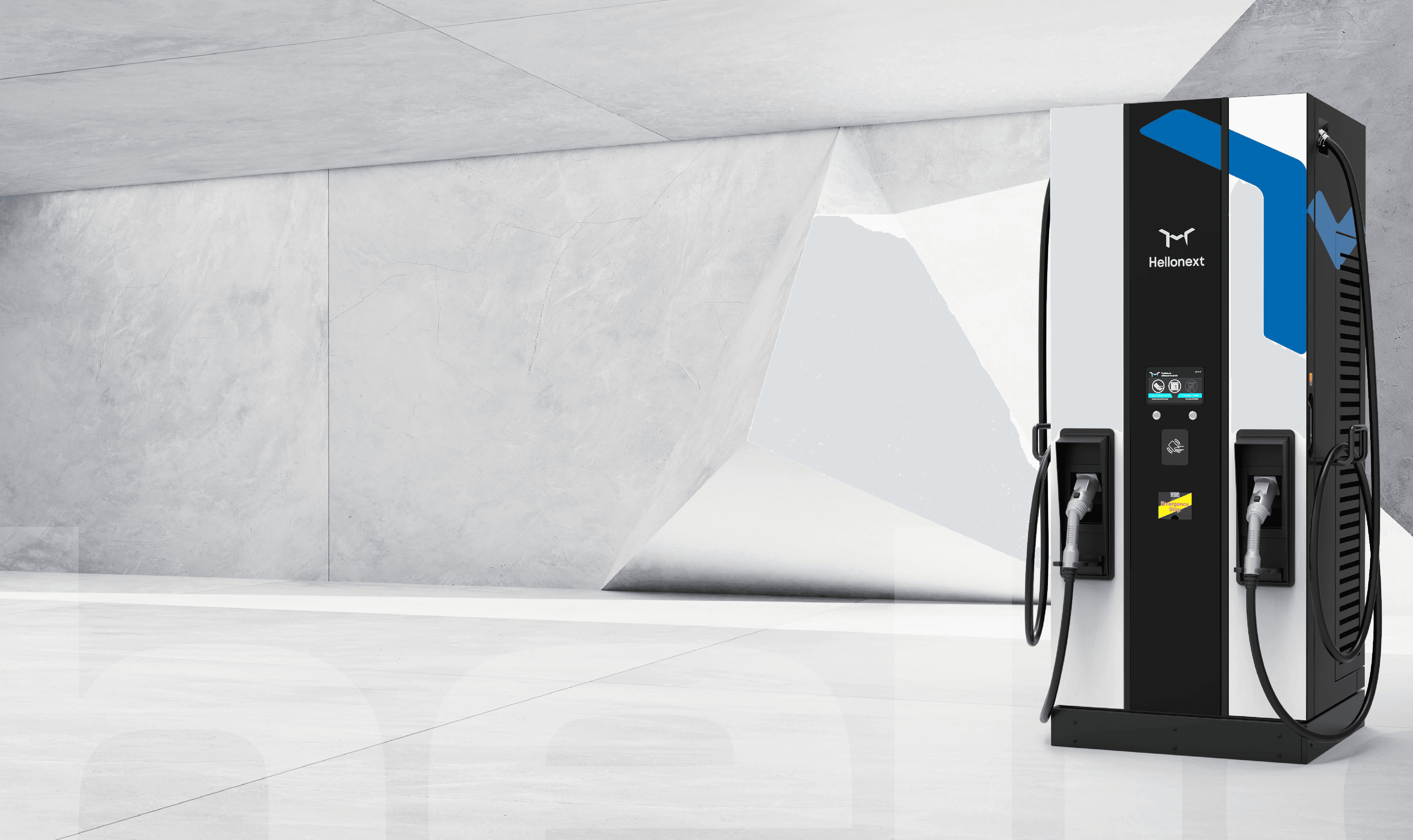

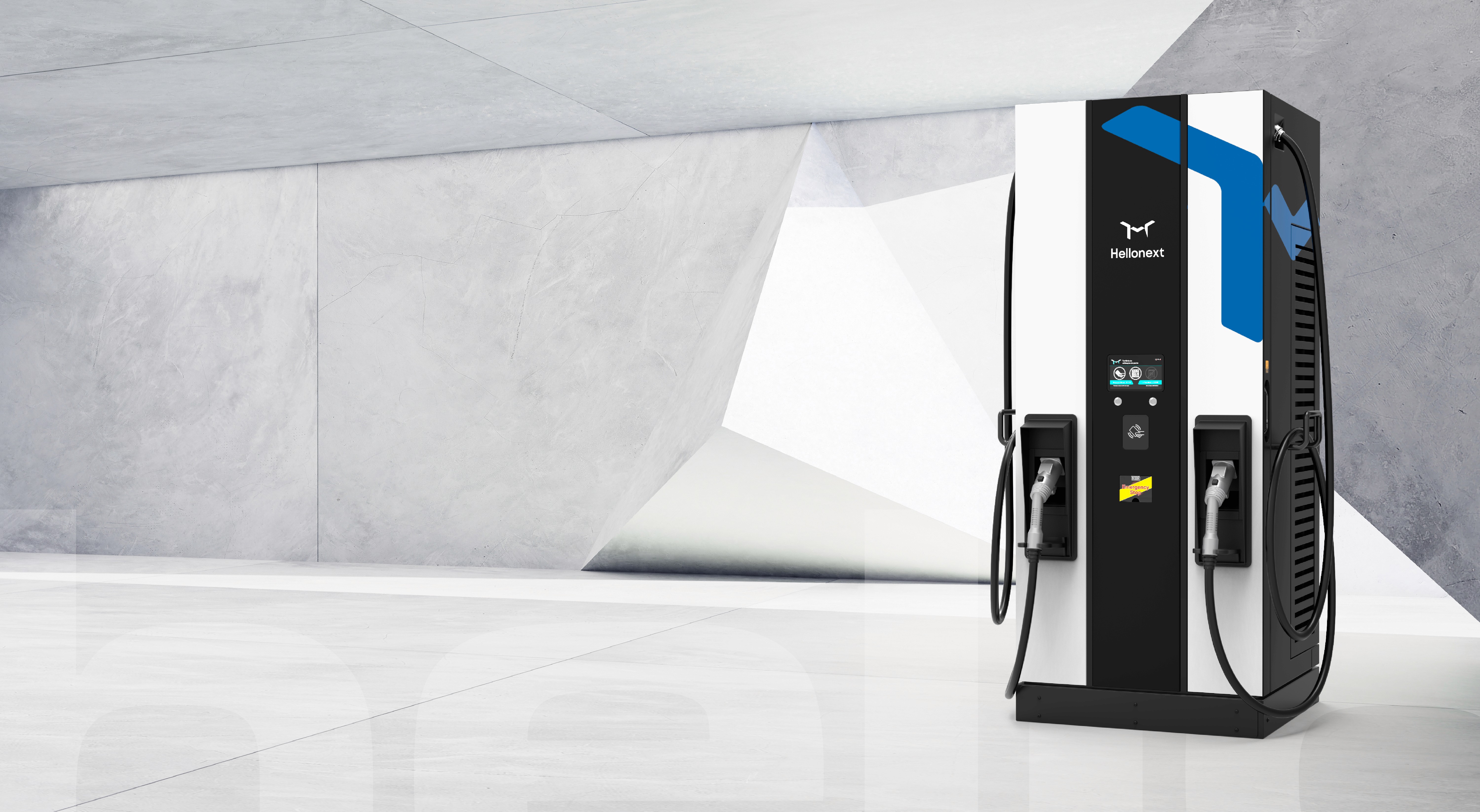

H2 60-180
Standalone DC Charger

H2 60-180
Standalone DC Charger

H2 60-180
Standalone DC Charger

H2 60-180
Standalone DC Charger
FEATURES
- From 60kW (2 x 30kW power modules) to 180kW (6 power modules)
- CCS2 250A or 300A Boost or 500A Liquid Coolling or CHAdeMO 120A or GB/T or CCS1
- > 95% efficiency at optimized V/I point
- Ergonomic cable management (optional)
- 7" LCD screen
- 2 Operation buttons
- Emergency stop button (optional)
- From 60kW (2 x 30kW power modules) to 180kW (6 power modules)
- CCS2 250A or 300A Boost or 500A Liquid Coolling or CHAdeMO 120A or GB/T or CCS1
- > 95% efficiency at optimized V/I point
- Ergonomic cable management (optional)
- 7" LCD screen
- 2 Operation buttons
- Emergency stop button (optional)
- Multiple authentication methods: App, RFID card reader and QR code (included)
- Payment terminal (optional)
- IP55 / IK10
- Supports Ethernet, 4G and Wifi
- OCPP 1.6 (or superior) compliant
- Size: 800 x 650 x 1900mm ±1%
- Weight: H2 60/90: ≤ 390kg (+/-1%); H2 120: 420kg (+/-1%); H2 150 460kg (+/-1%); H2 180: 500kg (+/-1%)
- Multiple authentication methods: App, RFID card reader and QR code (included)
- Payment terminal (optional)
- IP55 / IK10
- Supports Ethernet, 4G and Wifi
- OCPP 1.6 (or superior) compliant
- Size: 800 x 650 x 1900mm ±1%
- Weight: H2 60/90: ≤ 390kg; H2 120: 420kg; H2 150 460kg; H2 180: 500kg
FEATURES
FEATURES
ACCESSORIES

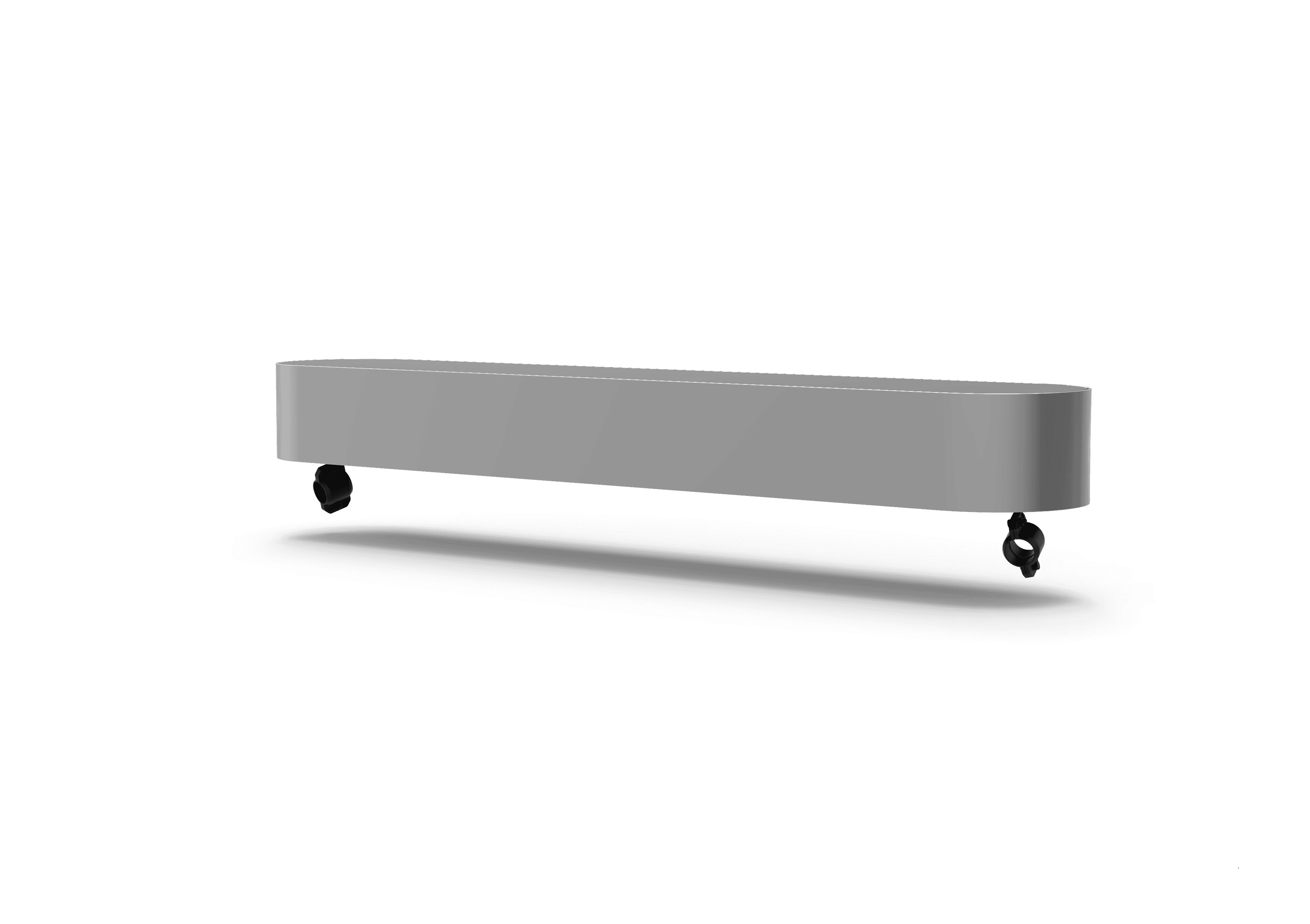

Cable Management
Cable Management System

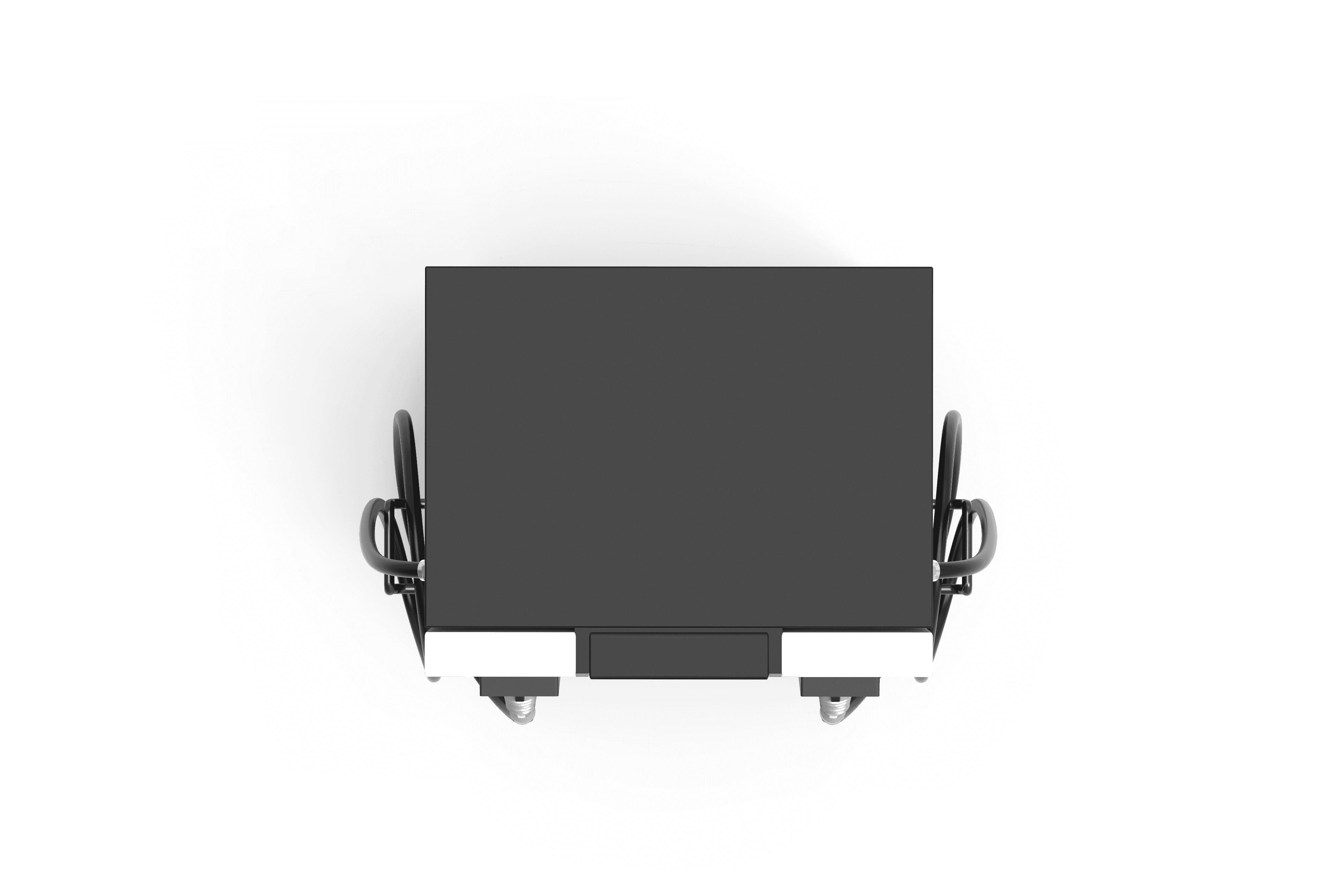

Cable Management
Canopy Cable Management System

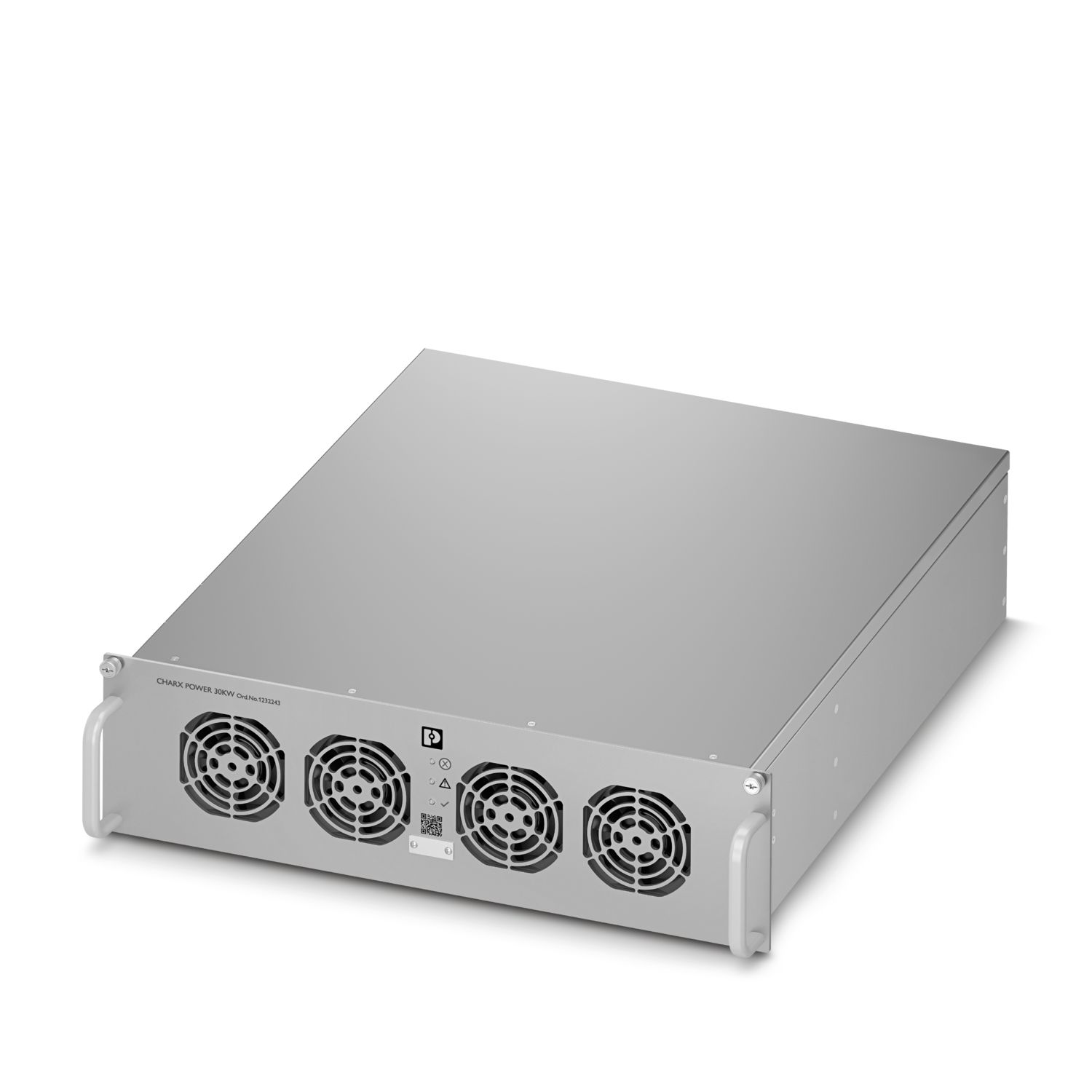

Power Module
Extra power module of 30 kW
Payment Terminal
Castle S1U2

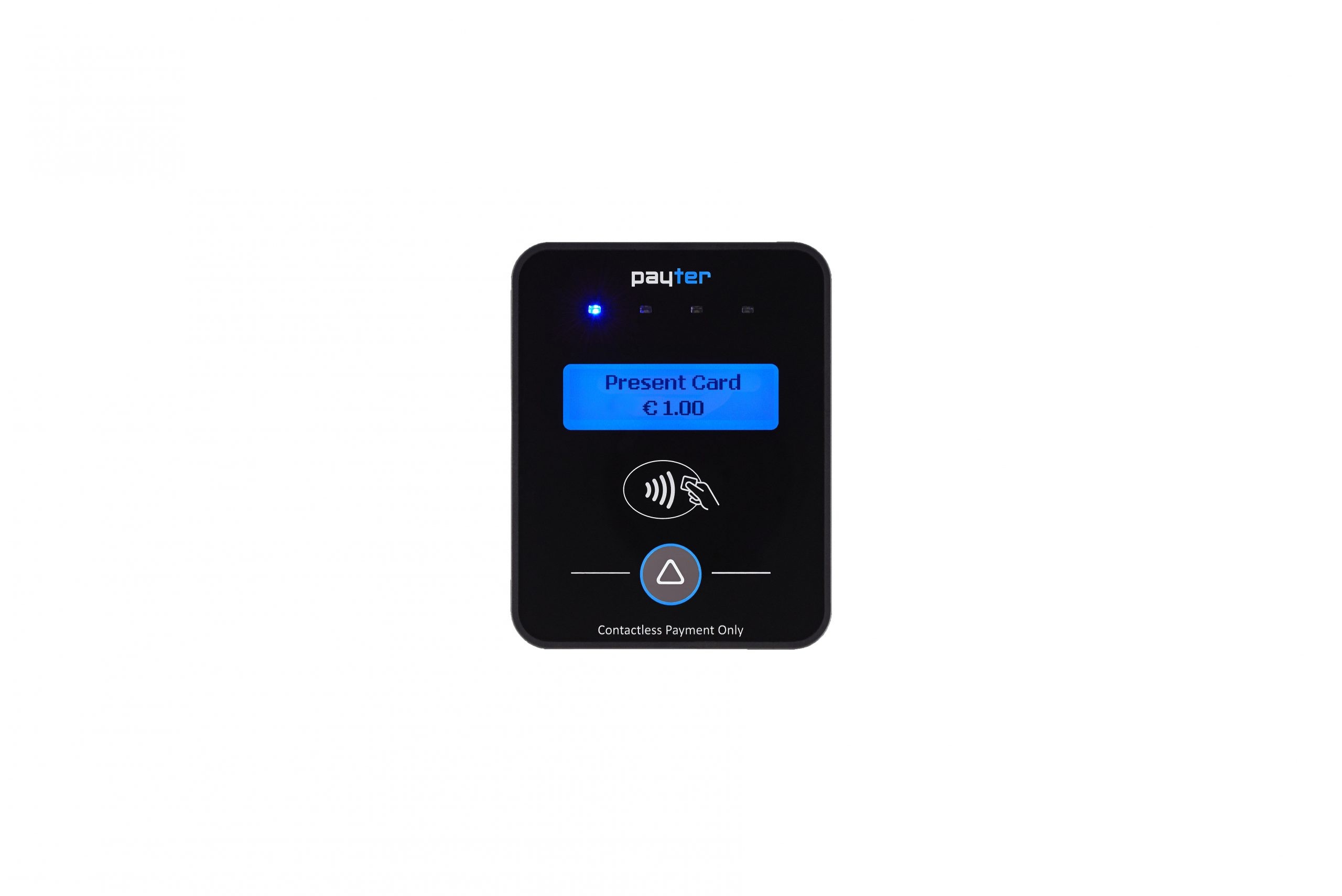

Payment Terminal
Payter P66
Payment Terminal
Payter Apollo
Payment Terminal
Pax IM30
Cable Management
Cable Management System
Cable Management
Canopy Cable Management System
Power Module
Extra power module of 30 kW
Payment Terminal
Castle S1U2
Payment Terminal
Payter P66
Payment Terminal
Payter Apollo
Payment Terminal
Pax IM30
Cable Management
Cable Management System
Cable Management
Canopy Cable Management System
Power Module
Extra power module of 30 kW
Payment Terminal
Castle S1U2
Payment Terminal
Payter P66
Payment Terminal
Payter Apollo
Payment Terminal
Pax IM30
Cable Management
Cable Management System
Cable Management
Canopy Cable Management System
Power Module
Extra power module of 30 kW
Payment Terminal
Castle S1U2
Payment Terminal
Payter P66
Payment Terminal
Payter Apollo
Payment Terminal
Pax IM30
